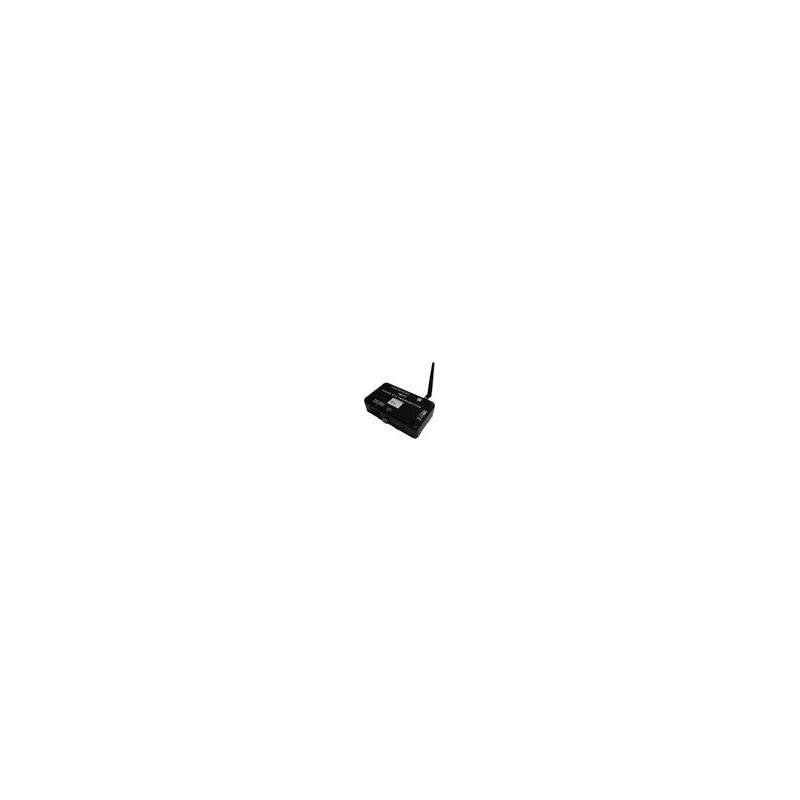

Somfy RS485 RTS TRANSMITTER

SKU: 1810803

Information:

  1. The RS485 RTS Transmitter is a motor controller for all
    Somfy RTS motors and receivers.
  2. It converts RS485 Somfy command coming from home control
    systems into RTS orders.
  3. Up to 16 RTS addresses: the interface can manage up to 16
    groups of RTS products from the RS485 network and from dry
    contact inputs (x5).
  4. Each group can control several motors and receivers.
  5. Function with RTS motors & receivers: open, close, stop,
    record a favorite light level, open the programming mode,
    dim up and down.
  6. Function with RTS lighting receiver: record a favorite
    light level, open the programming mode, dim up and down.
  7. The RS485 Transmitter cannot set motors end limits.
  8. Mounting on DIN Rail with both plastic clips and wall
    mountings using 2 screws (diameter 4mm).

 Technical Data:

  1. Frequency (MHz): 433.42
  2. Index Protection: 20
  3. Dimensions (mm): 175 x 100 x 46
